10G Direct Attach Cable

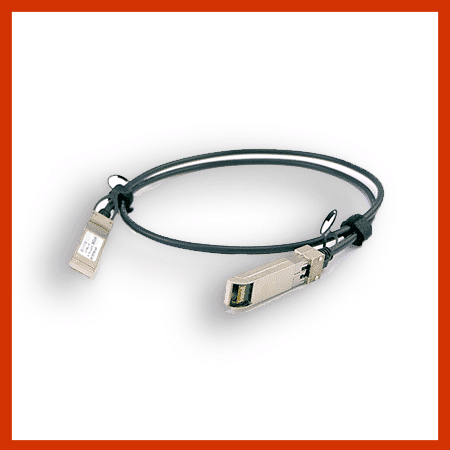

Optcore 10G DAC The DAC cable fully complies with SFP Multi-Source Agreement (MSA) standards SFF-8431, SFF-8432, and SFF-8472. Also It is designed for short reach links in 10Gbps high-speed interconnect applications such as high-performance computing (HPC), enterprise networking including top-of-rack switching and network storage servers. Additionally Optcore’s SFP-10G-DAC-PxM is  hot-swappable passive direct attach copper cable assembly (also known as Twinax Cable or DAC) with SFP modules at both ends. What is more It is developed specifically as a cost-effective and lower-power alternative to SFP optical modules and Active Optical Cables. Optional 1 to 10 meter length. Features I/O Connector designed for high-speed differential signal applications 360-degree cable braid crimp and enhanced EMI skirt Low insertion loss and low crosstalk Single 3.3V power supply Operating temperature range: 0 to 70°C RoHS Compliant and Lead-Free Specification   Product Series Direct Attach Copper Twinax Cable   Optcore Part Number SFP-10G-DAC-P1M   Form Factor SFP DAC   Data Rate 10.5Gb/s   Passive or actively equalized  Passive   Supply Voltage 3.3V   Cable Length 1 m   Cable impedance 100 Ω   Cable Type Twinax   Wire Gauge 30AWG   Minimum cable bend radius 25 mm   Cable Jacket Type PVC   Connector SFP /SFP   Digital Diagnostic Monitoring N/A   Environment Operating: 0°C to 70°C Storage: -40°C to 85°C   Weight 0.1 kg   Application Storage Area Networks( SAN) Network Attached Storage The switched fabric I/O High-density connections between networking equipment Data center cabling infrastructure Infiniband 1X SDR DDR QDR   Compliance SFF-8472,SFF-8431IEC/EN 61000-4-2 MIL-STD -883E, RoHS
